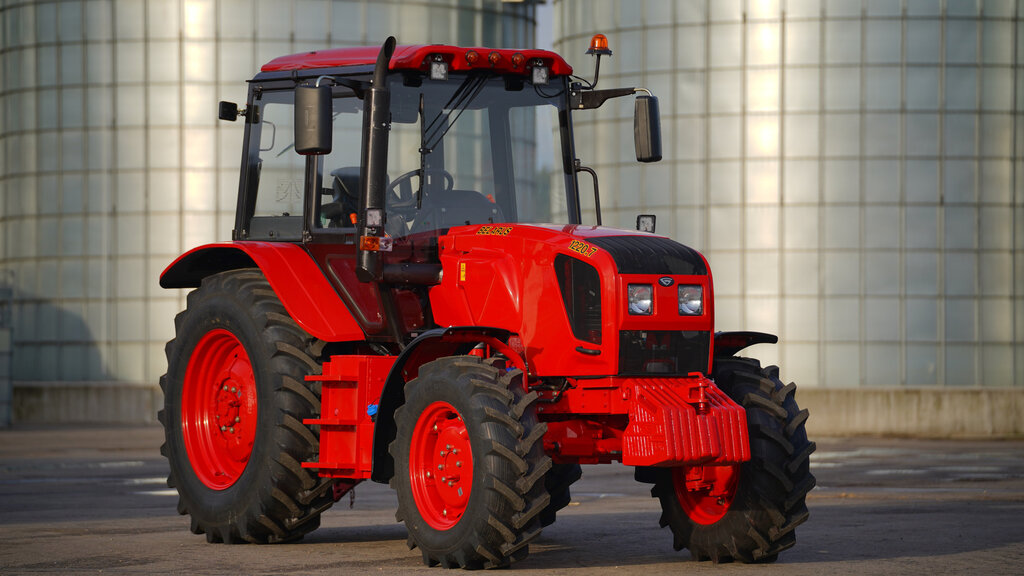

Traktor Belarus 1220.7

Traktor je určen pro různé zemědělské provozy s nesenými, polonesenými a taženými stroji a nářadím, pro nakládání a vykládání, pro přepravní operace i pro pohon stacionárních zemědělských strojů.

Engine
Type*	F*
Turbocharged diesel engine with direct fuel injection. Stage V
Model	Caterpillar C3.6
Rated power, kW [hp]	90 [122]
Crankshaft
rated speed, rpm	2200
Number of cylinders	4
Displacement	3,6
Maximum torque, Nm	500
Factor
of torque backup, %	28
Fuel tank capacity / tank capacity adBlue, I	135/16
Transmission
Clutch	dry, two-disk
Gearbox	mechanical, synchromesh
Shifting between gears	with synchromesh clutches
Number of gears: forward/reverse	16/8
Travel speed, km/h: forward/reverse	1.7 - 36.7 / 3.1 -17.2
Rear PTO:
continuous, I rpm	540
continuous, II rpm	1000
PTO control	electrohydraulic
Main parameters and dimensions
Overall length [with ballast weights of FLL], mm	4650
Width, mm	2300
Height [to cabin top], mm	2890
Tractor base, mm	2570
Track, mm:
front wheels	1535-2120
rear wheels	1500-2440
Agrotechnical clearance, mm	620
Least turning radius, m	4,6
Operating weight, kg	6035
Tire sizes [standard]:
1 front wheels	420/70R24
1 rear wheels	18,4R38
Hydraulic lift linkage
Maximum lifting capacity at suspension point, kg	4200
Maximum pressure, Mpa	20
Pump performance, l/min	56
Hydraulic system capacity, 1	28
Remote-cylinder with hydraulic hoist, providing draft, position, mixed and depth control of agricultural implements.

Basic configuration:

Air conditioner
Front ballast weight
LED working lights
Electrically adjustable and heated mirrors

Optional configuration:

Front lift linkage
Front PTO
GB 24/12
Stereo receiver connection
Kit for twinning of rear wheels
Electrohydraulic RLL control system
