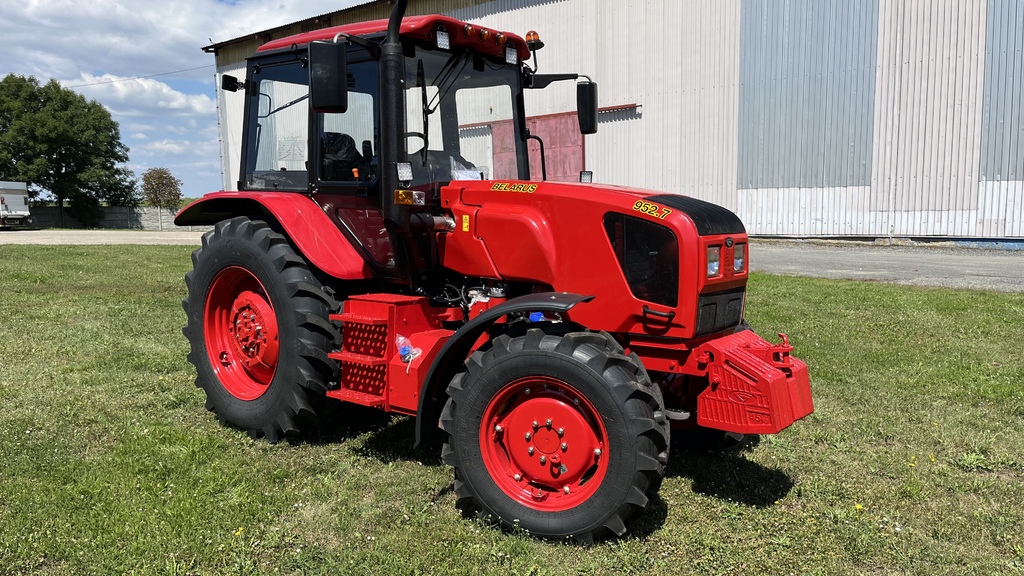

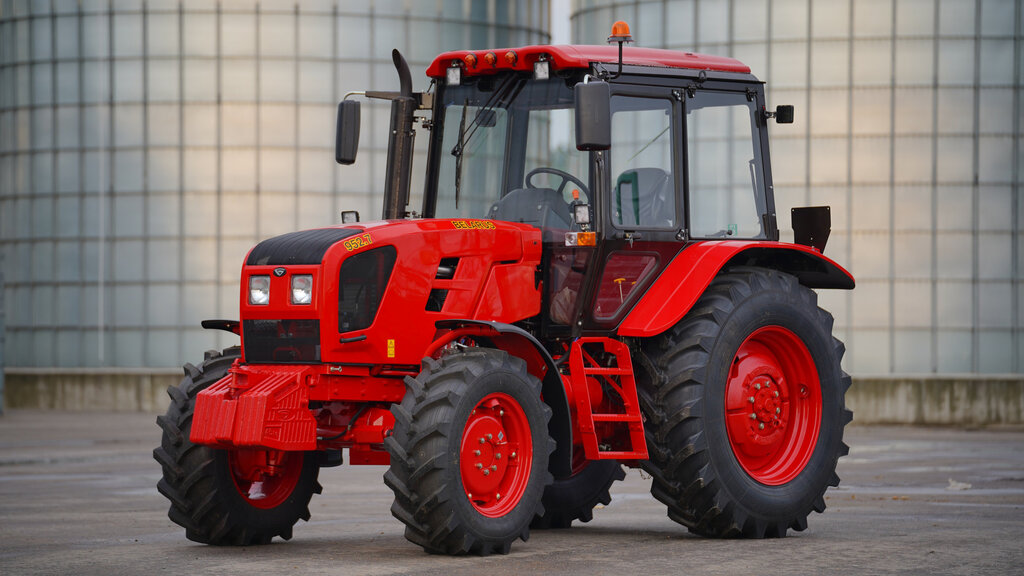

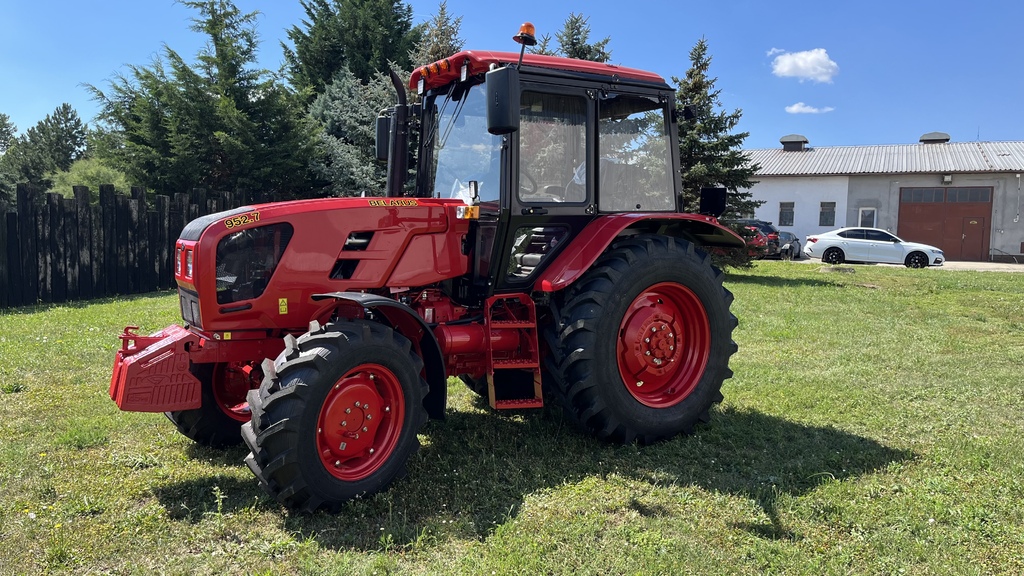

Traktor Belarus 952.7

Traktor je určen pro různé zemědělské provozy s nesenými, polonesenými a taženými stroji a nářadím, pro nakládání a vykládání, pro přepravní operace i pro pohon stacionárních zemědělských strojů.

Engine
Type	F
Turbocharged diesel engine with direct fuel injection. Stage V
Model	Caterpillar C3.6
Rated power, kW [hp]	70 [95]
Crankshaft
rated speed, rpm	2200
Number of cylinders	4
Displacement	3,6
Maximum torque, Nm	410
Factor
of torque backup, %	34
Fuel tank capacity / tank capacity adBlue, 1	135/16
Transmission
Clutch	dry, single-disk, diaphragm type
Gearbox	mechanical, synchromesh
Number of gears: forward/reverse	14/12
Travel speed, km/h: forward/reverse	2.4 - 35.2 / 2.2 -17.7
Rear PTO:
continuous, 1 rpm	540
continuous, II rpm	1000
PTO control	electrohydraulic
Main parameters and dimensions
Overall length [with ballast weights of FLL], mm	4500
Width, mm	1970
Height [to cabin top], mm	2850
Tractor base, mm	2450
Track, mm:
front wheels	1535-2120
rear wheels	1500-2100
Agrotechnical clearance, mm	520
Least turning radius, m	4,5
Operating weight, kg	5530
Tire sizes [standard]:
1 front wheels	360/70R24
\| rear wheels	18,4R34

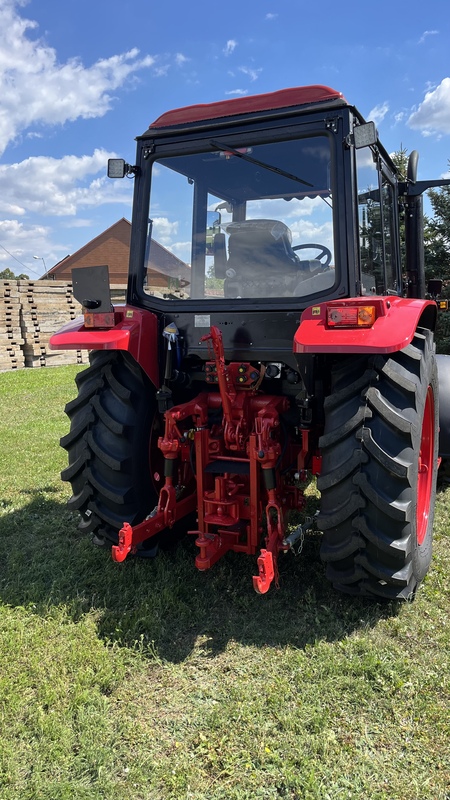

Hydraulic lift linkage
Maximum lifting capacity at suspension point, kg	4200
Maximum pressure, Mpa	20
Pump performance, l/min	46
Hydraulic system capacity, 1	28
Remote-cylinder with hydraulic hoist, providing draft, position, mixed and depth control of agricultural implements.

Basic configuration:

Air conditioner.
Front ballast weight.
LED working lights.
Electrically adjustable and heated mirrors.
Electrohydraulic RLL control system.

Optional configuration:

Front lift linkage.
Front PTO.
Stereo receiver connection.
Kit for twinning of rear wheels.
